Microscopi > Microscopi > Microscopi diritti > Microscopi a campo chiaro > Optika > B-190PL > Optika Microscopio B-191sPL,mono, DIN, N-plan, 40-600x, X-LED
Prodotto n.: 71093

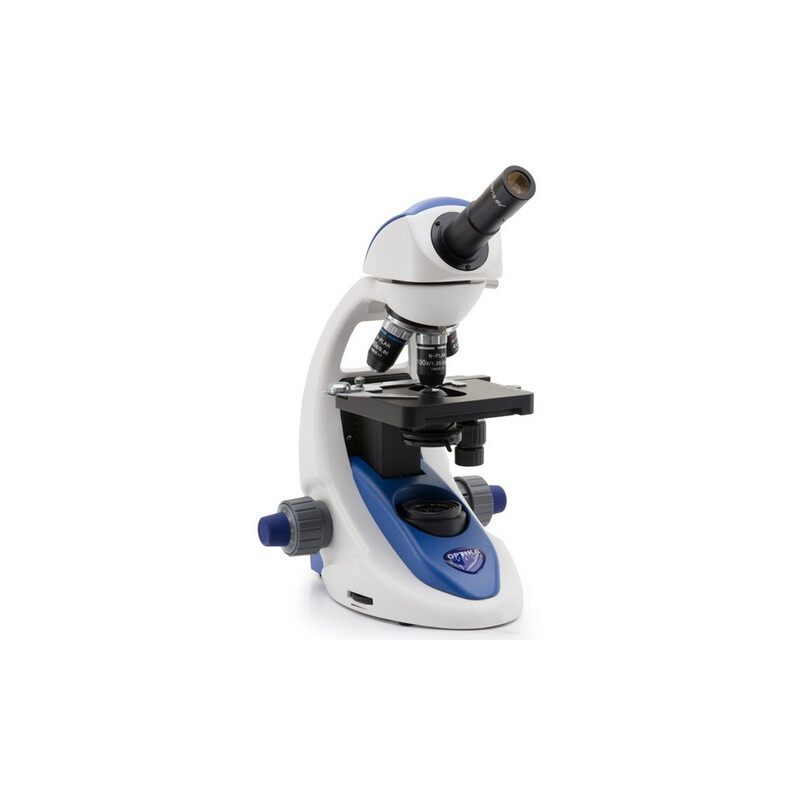

Microscopio B-191sPL,mono, DIN, N-plan, 40-600x, X-LED

a lungo termine
spedibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie B-190PL...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

B-191PL

Monocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 100x/1.25 (Oil/Water).

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 60x/0.85

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Specifiche

Ottica


Scala di rappresentazione
600
Numero di obiettivo
4
Iluminazione
Luce trasmessa
Curvatura di campo
Piano
Correttore colore
acromatico
Tipo di pila
LED
Obiettiva 1
N-PLAN 4x/0.10
Obiettivo 2
N-PLAN 10x/0.25
Obiettivo 3
N-PLAN 40x/0.65
Obiettivo 4
N-PLAN objective 60x/0.85
Sistema ottica
DIN (160mm)
Correzione all'infinito
no
Ingrandimento
600

Prestazioni


Luce trasmessa
ja
Campo chiaro
si
Tipo di pila
LED
Valore del campo visivo
18
Ingrandimento
600

Meccanica


Tecnica di fabbricazione
Monoculare
Visione (°)
30
Tavolino portaoggetti
Tavolo a croce
Revolver
4

Generale


Serie
B-190PL

Metodi di contrasto


Campo chiaro
si

Campi di aplicatione


Didattica
si

Campi di utilizzo


Scuola
si
Analisi dei parassiti
si

Varie


Codice prodotto del fornitore
B-191sPL
