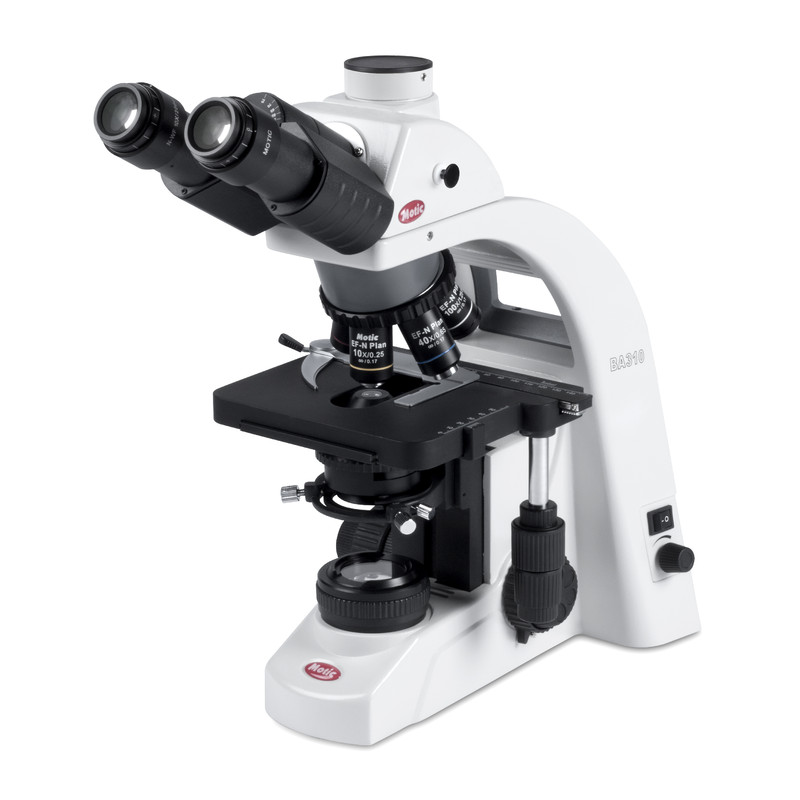

BA310 LED TRINOCULAR

Spezifikation

• Optical system Colour Corrected Infinity Optical System (CCIS®)
• Observation tube Trinocular head, Siedentopf type, 360º swiveling
• Trinocular light split 100:0/20:80 (optional 100:0/0:100)

• Optical system Colour Corrected Infinity Optical System (CCIS®)
• Observation tube Trinocular head, Siedentopf type, 360º swiveling
• Inclination 30º inclined, 360º rotating
• Trinocular light split 100:0/20:80 (optional 100:0/0:100)
• Interpupillary distance 48-75mm
• Diopter adjustment On both eyepieces, +/- 5 diopter
• Eyepieces Widefield N-WF10X/20mm with diopter adjustment
• Nosepiece Reversed quintuple
• Objective classification CCIS® EC Plan Achromatic, DIN
• Objectives

-4X/0.10 (WD 15.9mm)
-10X/0.25 (WD 17.4mm)
-40X/0.65/S (WD 0.5mm)
-100X/1.25/S-Oil (WD 0.15mm)

• Objective mounting thread W 4/5"x1/36" (RMS standard)
• Stand type Upright

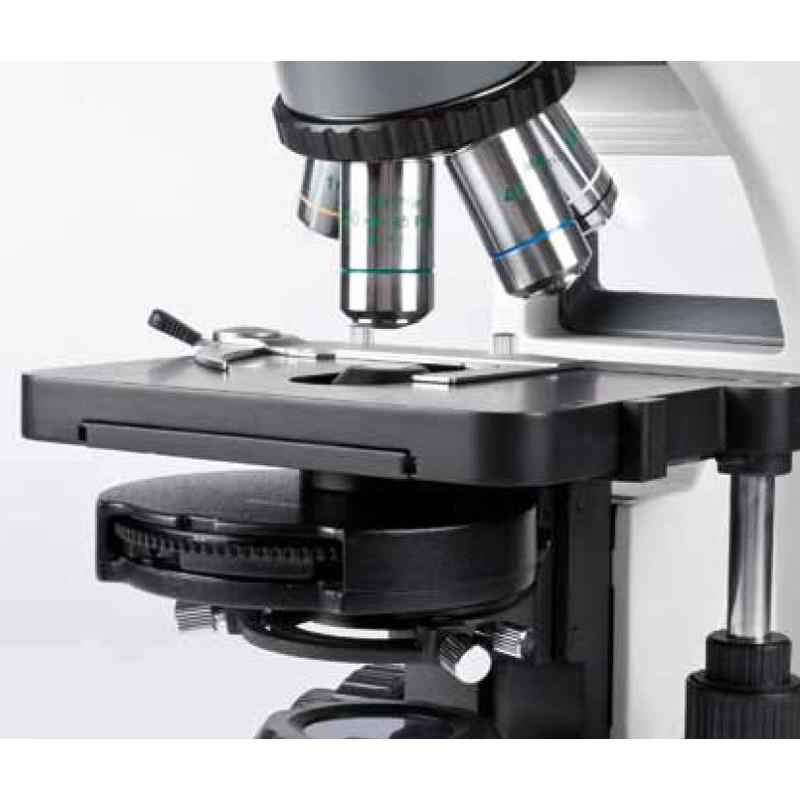

• Stage Mechanical stage with built-in low position coaxial stage control with tension adjustment
• and 2-sample holder
• Stage size 175x140mm
• Travel range X&Y 76x50mm
• Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
• Diaphragm Iris diaphragm
• Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
• Fine focus precision 2μm
• Focusing stroke 20mm
• Upper limit stop Upper limit stop preset but adjustable
• Filter holder On top of the illuminator
• Transmitted illumination Koehler LED 3W with intensity control
• Transformer Internal
• Power supply 100-240V (CE)
• Accessories included

1. Dust cover
2. power cord
3. Hex key
4. Immersion oil (5ml)
5. spare fuse
6. cord hanger
7. thumb screw

• Dimensions LxWxH 400x220x400mm
• Net weight 8.6kg

• Contrast: phase contrast
