Microscopi > Microscopi > Microscopi diritti > Microscopi a fluorescenza > Euromex > iScope > Euromex Microscopio iScope, IS.3153-PLFi/6, trino
Prodotto n.: 51464

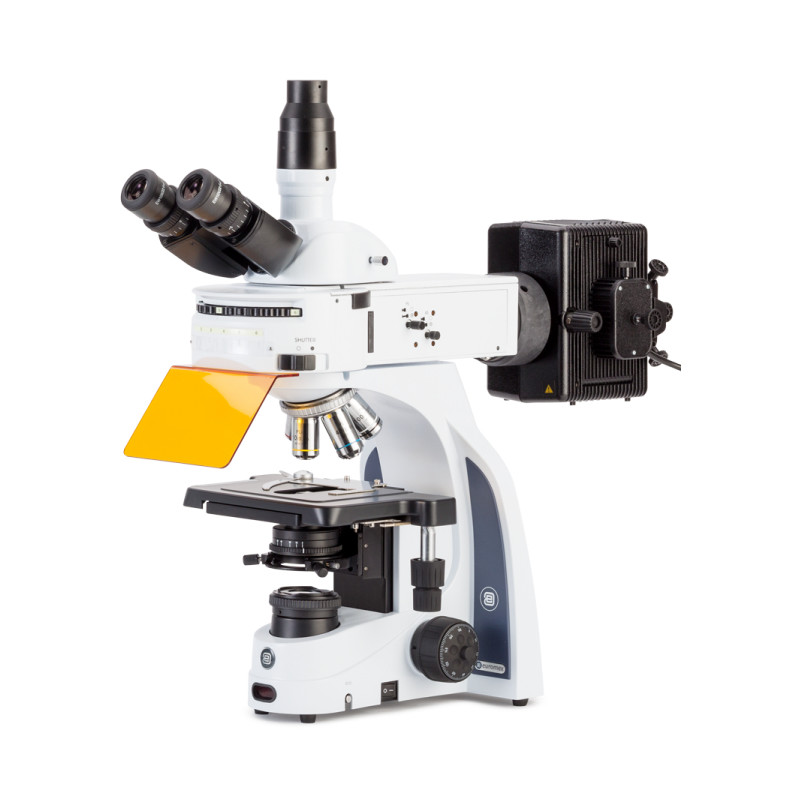

Microscopio iScope, IS.3153-PLFi/6, trino

$ 9.800,00 IVA incl., più spese di spedizione
troppo caro?
Giallo
disponibile in 1-2 settimane + Tempo di trasporto

Consegna prima di Natale,
quando il vostro ordine entro il 04.12!
Restituzione possibile fino al 31.1.23!


Descrizione prodotto

Per saperne di più sulla serie iScope...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

iScope Fluorescence Microscopes

Eyepieces

• Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes.

• Eyepieces can be secured to the tubes

Heads

• Binocular and trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 76 mm and is equipped with diopter adjustment(s).

• An unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm).

• The trinocular head comes with a Ø 23.2 mm photo port.

• An optional ergonomic titling head and corresponding Ø 23.2 mm photo tube attachment are also available (only infinity corrected models)

Nosepiece

• Revolving and reversed nosepiece for maximum 5 objectives

Stages

• 216 x 150 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm mechanical stage. The iScope® rackless stage has no protruding parts, enabling more smooth movements and is safer

• 220 x 157 mm ceramic stage with integrated 75 x 50 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches. The surface also ensures stray light not to be reflected from the stage into the objective

Condenser For Brightfield

• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast.

• With magnification indication.

• A slider with a simple dark stop for dark field up to 400x magnification is also available

Condenser for Phase Contrast

• An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x and S100x oil immersion objectives and dark field stop position for dark field contrast up to 400x magnification

Focusing

• Coaxial coarse and fine adjustments, 200 graduations, 1 µm per graduation, 200 µm per rotation, total travel approximately 24 mm.

• Supplied with an adjustable rack stop to prevent damage to sample and objectives.

• The coarse adjustments are equipped with friction control

Illumination

• 3 W adjustable Köhler NeoLED™ diascopic illumination with internal 100-240 V power supply

• The innovative NeoLED™ design offer larger apertures, allowing the optical system of the iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating lifetime

• The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as an option

Illumination Fluorescence

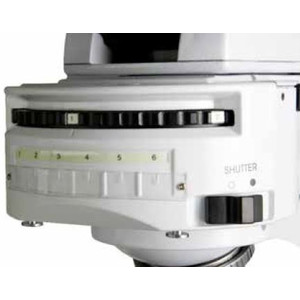

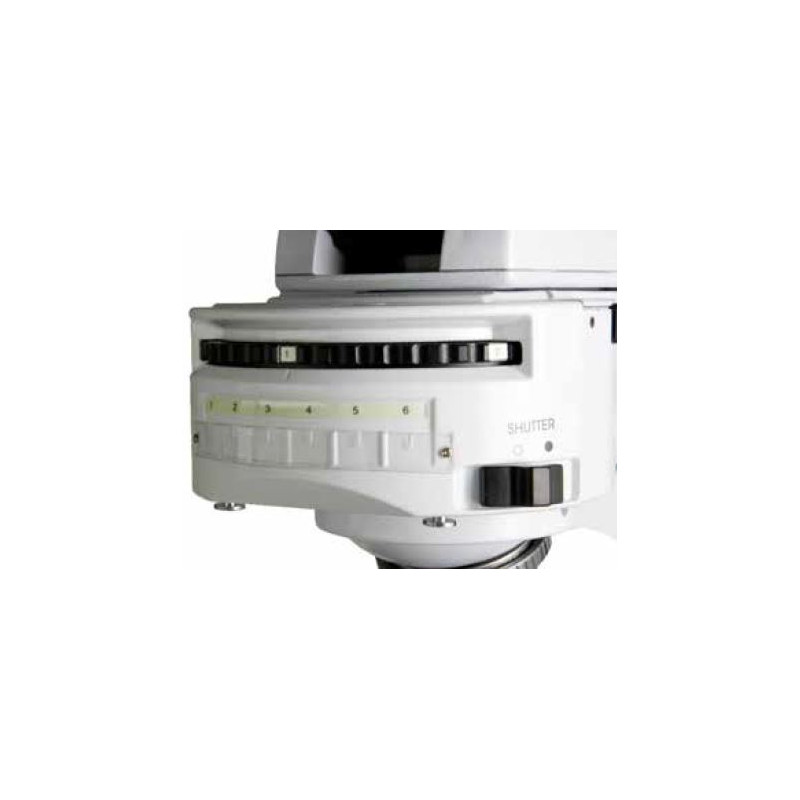

• The 6-positions rotating or 3-positions slider fluorescence attachments are supplied with standard 100 W HBO mercury vapor light source for broad powerful light spectrum and 100-240 V external power supply with indication of the life time of 100 W HBO lamp. Supplied with standard fluorescence filters sets for blue and green excitation and a UV protection shield

• The iScope® fluorescence microscopes equipped with a 100 W mercury vapor light source can be supplied with more specific, optimized and application related fluorescence filters sets

• Two single position fluorescence attachments are supplied with 460-495 nm 3 W LED for blue excitation or 510-550 nm 3 W LED light source for green excitation and 100-240 Vac/7.5 Vdc external power supply. Supplied with standard fluorescence filters sets for blue and green excitation 6 blocks

I Care Sensor

• The unique iCare Sensor is developed to avoid unnecessary loss of energy

• The illumination of the microscope automatically switches off shortly after microscopists step away from their position

Css - Cable Storage System

• iScope® allows users to easily insert the power cable into the backside of the instrument, which enables easy storage

• The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

Packaging

• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective.

• Models with 100 W mercury vapor light source have a UV protection shield.

• All packed in polystyrene boxes

Specifiche

Ottica


Scala di rappresentazione
4-100
Numero di obiettivo
4
Iluminazione
Luce diretta e trasmessa
Curvatura di campo
Piano
Correttore colore
acromatico
Sospensione
si
Obiettivo ad immersione
si
Condensatore
Abbe N.A.1.25
Tipo di pila
LED
Obiettiva 1
Plan PLFi 4x / 0.10 IOS
Obiettivo 2
Plan PLFi 10x / 0.25 IOS
Obiettivo 3
Plan PLFi S40x / 0.65 IOS
Obiettivo 4
Plan PLFi S100x / 1.25 IOS
Oculare
WF 10x / 22 mm (Ø 30mm)
Correzione all'infinito
si
Ingrandimento
40-1000

Prestazioni


Regolazione luminosità
si
Fluorescenza
si
Campo chiaro
si
Metodi di contrasto
Fluorescenza

Meccanica


Tecnica di fabbricazione
Trinoculare
Visione (°)
Visione angolata 30°
Tavolino portaoggetti
Tavolo a croce
Revolver
5
Messa a fuoco
Movimenti ampi e micrometrici

Generale


Peso (g)
11300
Altezza (mm)
407
Larghezza (mm)
210
Lunghezza (mm)
255
Serie
iScope

Metodi di contrasto


Fluorescenza
si

Campi di aplicatione


Biologia e Medicina
si

Campi di utilizzo


Fluorescenza
si
Biologia, zoologia e botanica
-
Patologia e istopatologia
si

Varie


Codice prodotto del fornitore
IS.3153-PLFi/6
