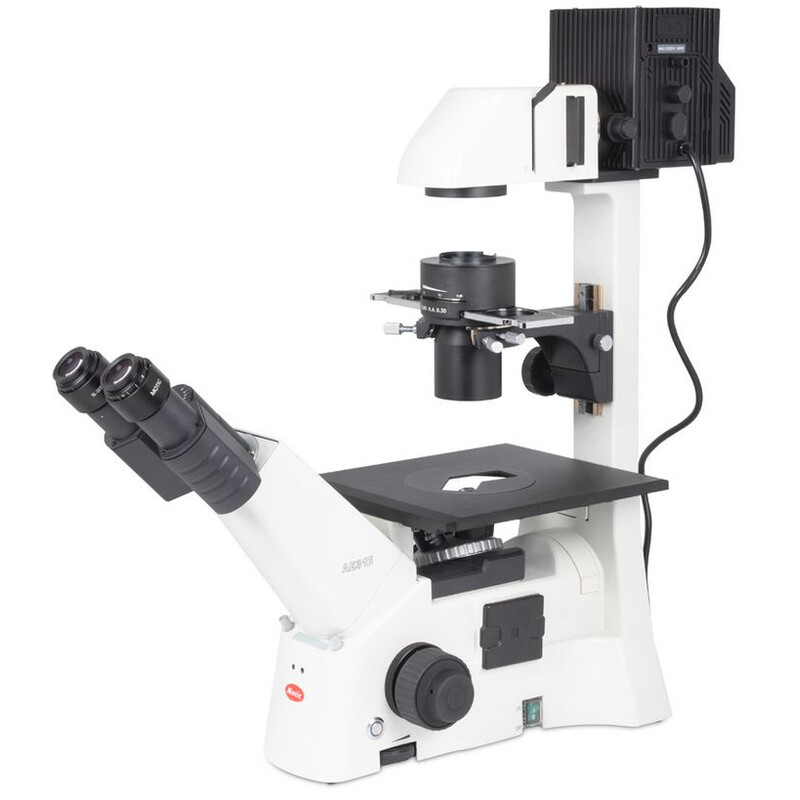

Motic Microscopio invertito AE31E bino, infinity, 40x-400x, phase, Hal, 100W

Prodotto n.: 67734
Produttore: Motic

$ 5.400,00

IVA incl.
Descrizione prodotto
Recensioni clienti
Accessori raccomandati

Descrizione prodotto:

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.


  • Observation tube Binocular head, Siedentopf type, 360º swiveling
  • Optical system: Colour Corrected Infinity Optical System (CCIS®)
  • Inclination 45º inclined
  • Interpupillary distance 48-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield WF10X/22mm with diopter adjustment
  • Nosepiece Left side facing quintuple
  • Objective classification CCIS® Plan Achromatic
  • Objectives

4X/0.10, WD 12.6mm

10X/0.25 WD 4.1mm phase

20X/0.30 WD 4.7mm, LWD, phase

40X/0.50 WD 3.0mm, LWD phase

  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Inverted
  • Stage Plain stage with metal and glass stage inserts
  • Stage size 200x239mm
  • Condenser Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2µm
  • Focusing stroke 10mm
  • Free working distance Working distance without condenser 231mm
  • Transmitted illumination Koehler Quartz halogen 12V/100W with intensity control
  • Illumination features Auto-OFF and Light Memory function
  • Transformer External
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. blue, green interference and ground glass filters
  5. phase ring Ph1
  6. centering telescope
  7. centering keys
  8. spare fuse

  • Dimensions LxWxH 629x200x595mm
  • Net weight 13.2kg
