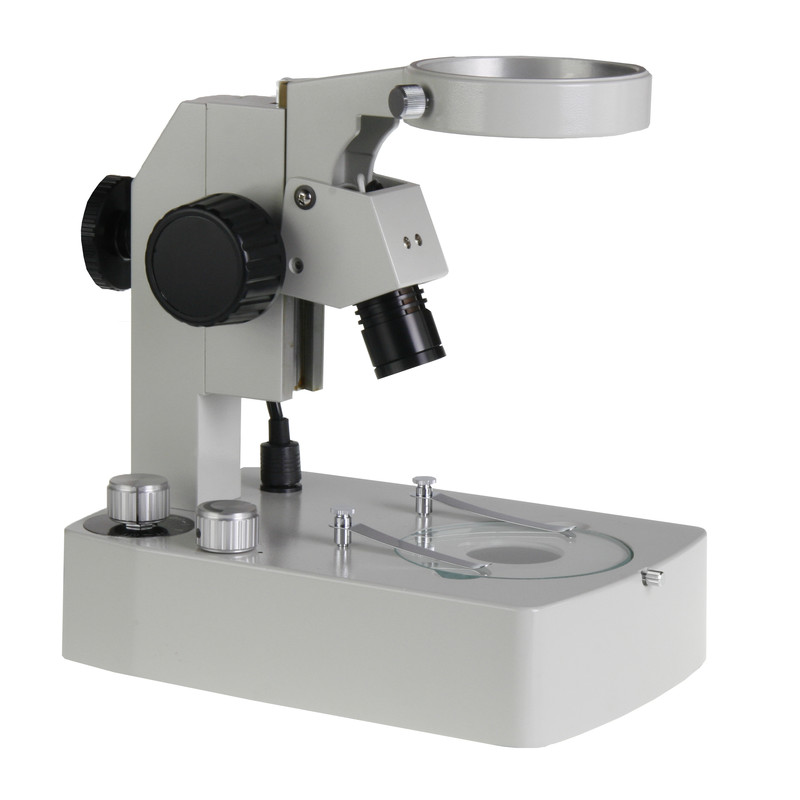

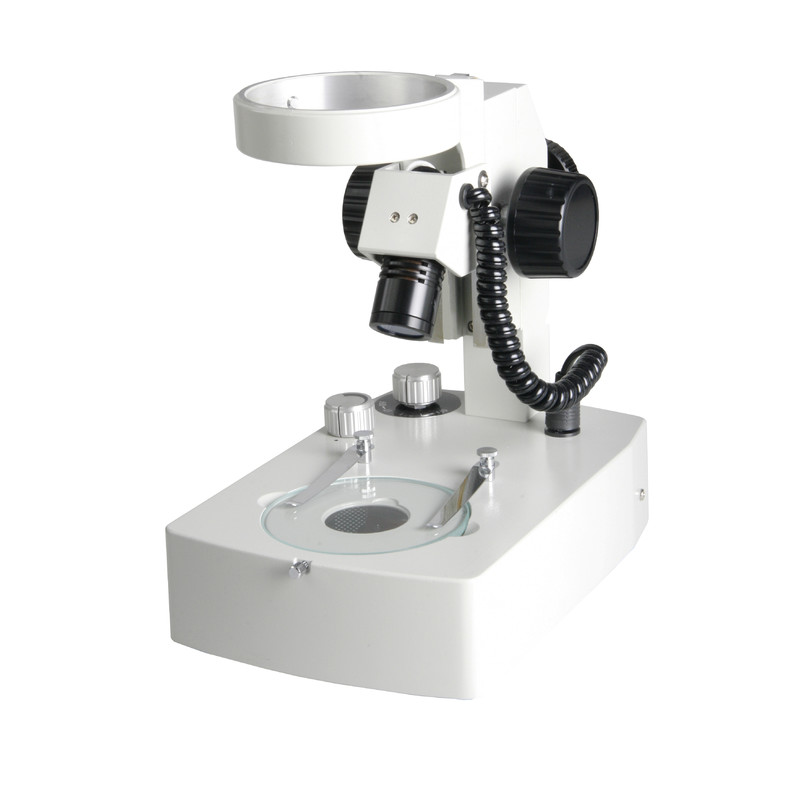

Stativo H

H Tripod:

The stand consists of:

• the foot is 60 mm high with telescopic column
• Object pane of glass
• black white object plate
• 2 stage clips

Height adjustment:

• Microscope carrier is fixedly mounted on the extendable column

Lighting:

• Halogen lighting for incident and transmitted light illumination 6 volt, 10 watt
• Barlight with frosted blue filter
• Transmitted illumination with diffuse milk white filter
• Both lights can be switched on separately and simultaneously
• the light intensity is continuously variable
• Built-in transformer 230V

Stand dimensions:

• 240 mm long
• 160 mm wide
• 240-290 mm high

Maximum object height for:

• Stereo Headset E-series 65 mm
• Stereo Head Z series 95 mm

Suitable for Z-Series and E-Series; not suitable for EE.1521
