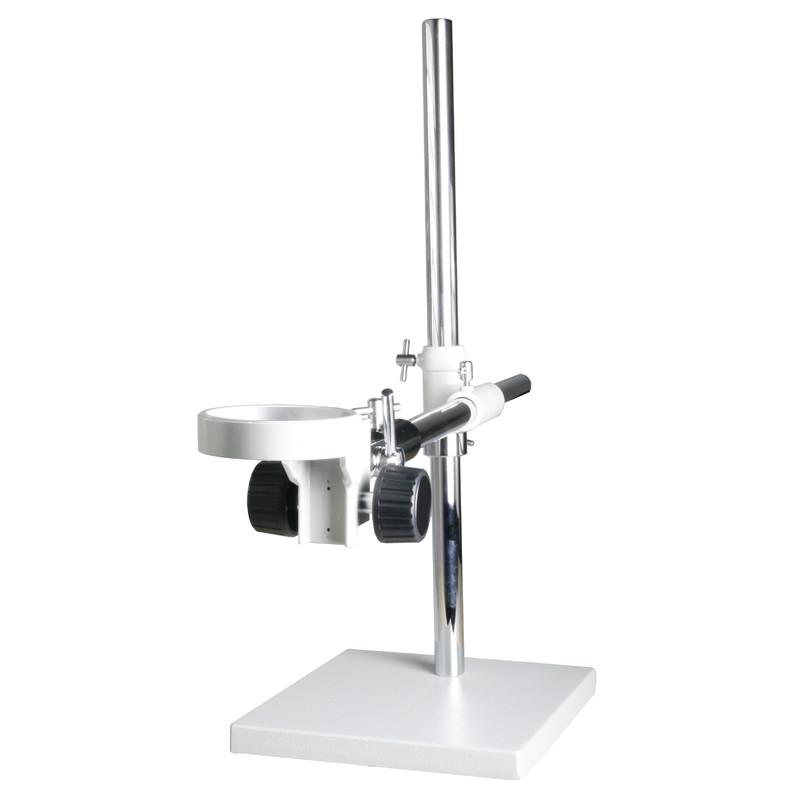

Stativo L

L-STAND

The stand consists of:

• heavy foot 270 x 270 mm
• vertical pillar 610 mm, 29 mm diameter
• the horizontal arm is adjustable and with FS microscope slide 780 mm

Height adjustment:

• FS-type microscope slide, on all sides tiltable. Built flexible lamp holder

Stand dimensions:

• 780 mm long
• 270 mm wide
• 650 mm high
• Weight 19.5 kg

Others:

• Maximum object height for
• Very large free workspace
• Suitable for all stereo heads
• Maximum object height about 450 mm
• The maximum distance from the vertical pillar to the optical axis of the microscope is about 700 mm

Suitable for Z-Series and E-Series
