Per saperne di più sulla serie SZM...
Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

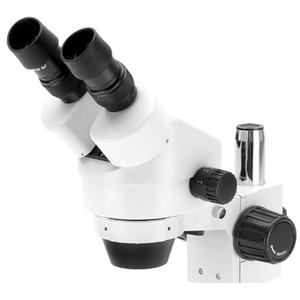

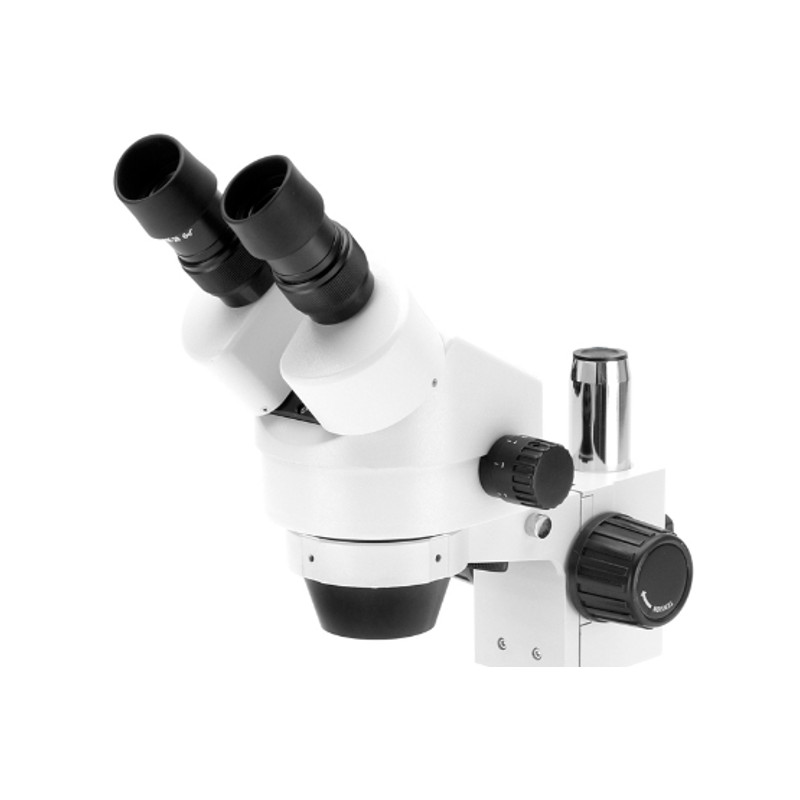

SZM-B - routine stereozoomhead
Head
- Binocular 360° rotating and 45° inclined.
- Adjustment +- 5 diopters on both eyepieces.
- Interpupillary adjustment 51-75 mm.
Eyepieces
- Widefield eyepieces WF10x/20 with field number 20
Objective
- Parfocal achromatic objective 1X
- Working distance: 100 mm
- Zoom range: 0,7x - 4,5x (zoom factor: 6,43:1).
- Maximum magnification in standard configuration: 45X (can be increased to 180X).
Accessories
- Instruction manual and dust cover included.
Illumination
The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:
- ST-151
- ST-153
- SZ-STL3Led
- ST-155
- ST-156
- SZ-STL8
Focusing The microscope can be used with the following models of stand: As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.
- ST-150
- ST-151
- ST-152
- ST-153
- SZ-STL1H
- SZ-STL2H
- SZ-STL3Led
- SZ-STL3
- SZ-STL4
- ST-155
- ST-156
- SZ-STL8
