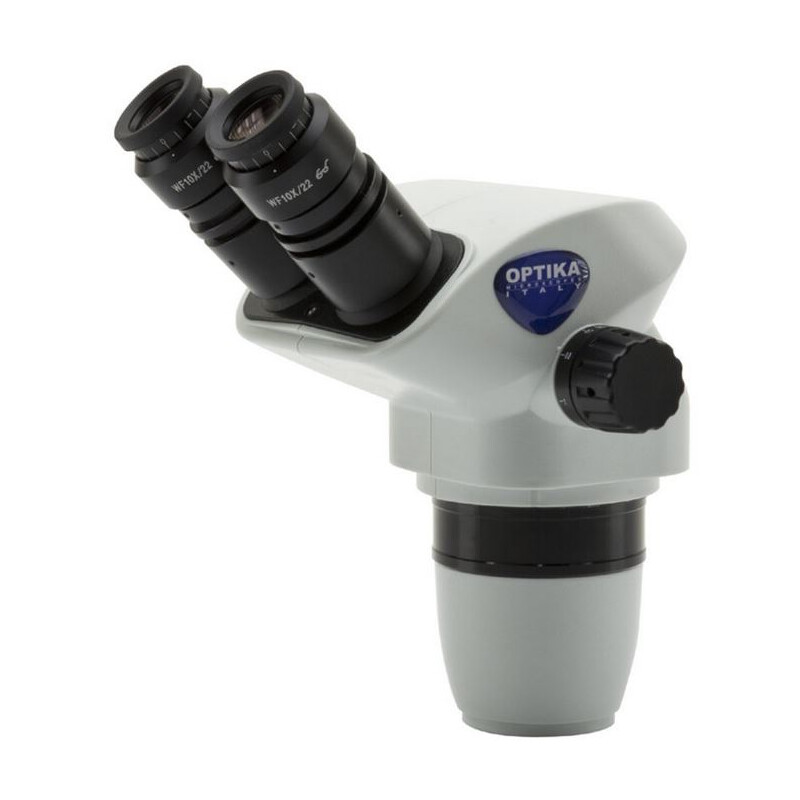

SZX-A Heads – Advanced Analysis With High Power Magnification
- Purposely designed for particularly performing zoom conditions
- 3D Greenough view for high resoluted images & large field depth
- 23 mm field number and large working distance (up 110 mm)
- 8.46:1 zoom ratio – zoom magnification from 6.5x to 55x
- Simultaneous eyepiece & camera observation (on SZX-TA)
- High magnification change from overview to tiny details
- Interpupillary distance: Adjustable between 51 and 75 mm.
- dioptric adjustment: On both eyepieces.
- Eyepieces: WF10x/23 mm, high eyepoint, secured by screw and with integrated rubber cups.
- Objective: Parfocal achromatic zoom 0.65x…5.5x (zoom factor 8.46:1).
- Working distance: 110 mm.
- Head: Binocular, 360° rotating on all stands and 45° inclined.
