Microscopi > Microscopi > Microscopi diritti > Microscopi a contrasto di fase > Optika > B-510 > Optika Microscopio B-510PH, phase,trino, W-PLAN IOS, 100x-1000x, EU
Prodotto n.: 57424

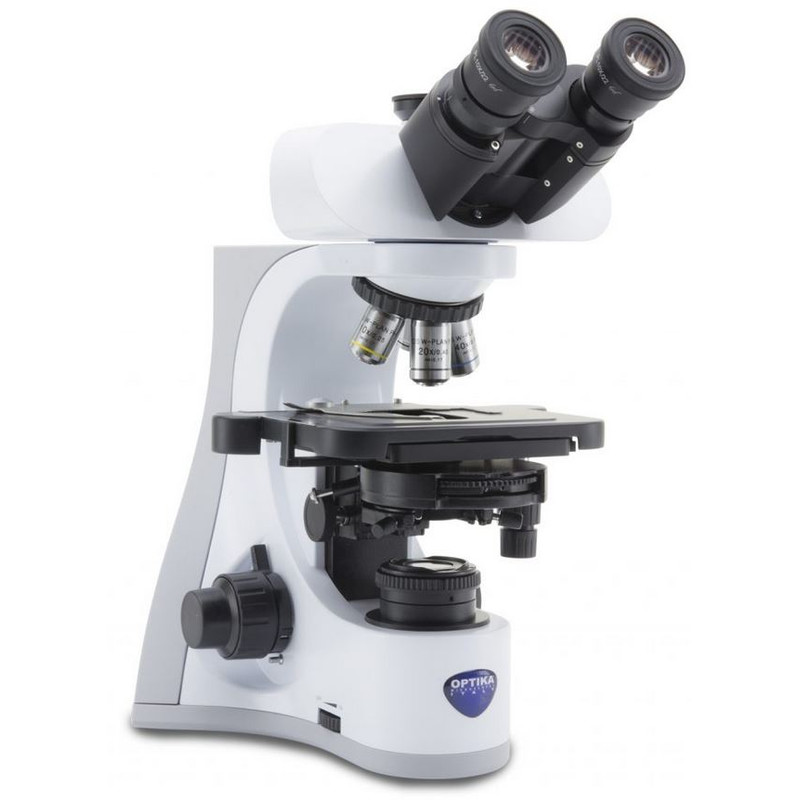

Microscopio B-510PH, phase,trino, W-PLAN IOS, 100x-1000x, EU

Prezzo di vendita consigliato: $ 2.790,00 Il nostro prezzo:
$ 2.510,00 IVA incl., più spese di spedizione
troppo caro?
a lungo termine
spedibile in 6-10 settimane + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie B-510...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

B-510 Series

OPTIKA B-510 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users. This series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive IOS W-PLAN optics, the Infinity Corrected Optics (IOS) providing the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring good quality routinary optics and designed to ensure field flatness up to F.N. 22. The full Köhler system optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, whilst the state-of-the-art, exclusive X-LED3 lighting source makes sure your specimen will be properly and homogeneously illuminated with incredibly low consumptions and significantly long lifespan. With multi-head observation systems, up to 5 people/colleagues can observe the same image on B-510; ideal for teaching and training students, especially in the medical field. The main observer and additional viewers will benefit of an extremely homogeneous light conditions, with a three-colour pointer with settable intensity to highlight points of interest.

Highlights:

Illumination:

Transmitted brightfield illumination is one of the most commonly used observation method in optical microscopy, and is ideal for fixed, stained specimens or other types of samples having high natural absorption of visible light. B-510 series is fitted with high-efficiency LED brightfield illuminator X-LED3, for the best outcome when using this technique. Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

Optics:

  • Trinocular heads with 22mm field number
  • True infinity optical system available (IOS)
  • Fully centerable condenser for precise light control
  • IOS W-PLAN objectives, high numerical apertures
  • Planachromatic optics with more than 90% flat field
  • Significant optical correction, low field curvature and distortion

Best resolution, color and contrast WITH Köhler Illumination. B-510 Series is equipped with Köhler which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares.In this way, you will achieve the full control over the illumination aperture to reach the best compromise between resolution and contrast and for some enhancements on the depth of field.

Mechanics:

The rackless stage has been designed with a belt-driven mechanism that allows a smooth movement without any protruding part. This design gives you a more compact solution and lowers any risk of injury after accidentally hitting the rack with your hands.

  • Ergonomic positioning of the main controls
  • Long lasting mechanical parts, rackless moving stage
  • Maintenance-free illumination system
  • Improving productivity, reducing fatigue
  • Increases job accuracy and quality
  • Easily portable, with comfortable handgrip

OPTIKA B-510 phase contrast microscopes are synonym of reliable and ultra-modern, advanced routine solution for efficient analysis in transmitted light applications and phase contrast, considering all the relevant aspects for users. B-510 Series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive IOS W-PLAN PH optics, the Infinity Corrected Optics (IOS) for phase contrast providing the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring good quality routinary optics and designed to ensure field flatness up to F.N. 22. The full Köhler system optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, whilst the state-of-the-art, exclusive X-LED3 lighting source makes sure your specimen will be properly and homogeneously illuminated with incredibly low consumptions and significantly long lifespan. A dedicated model is available for Asbestos fiber analysis at a glance. Phase contrast is widely used on transparent, non-stainable, samples like culture of living cells, microorganisms and subcellular particles to enhance the contrasts of transparent and colorless objects, revealing many cellular structures that are not visible with a simple brightfield microscope.

PHASE CONTRAST:

Phase-contrast microscopy is a particular technique applied in transparent, non-stainable, samples like culture of living cells, microorganisms, lithographic patterns, latex dispersions, fibers, asbestous and subcellular particles. It reveals many cellular structures that are not visible with a simple brightfield microscope.

CONDENSER SUITABLE FOR DARKFIELD:

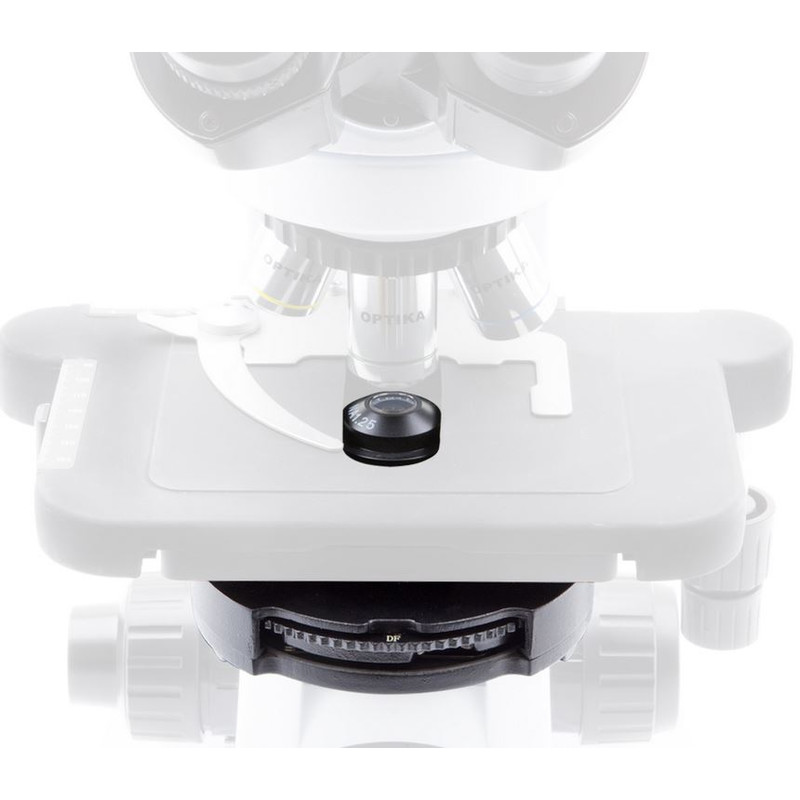

OPTIKA B-510PH is equipped with a 5-position dedicated rotating condenser for brightfield (standard use), phase contrast (10x/20x, 40x and 100x phase diaphragms), and a darkfield position for dry objectives

IMPROVING THE MOST IMPORTANT ASPECTS OF MICROSCOPY EXPERIENCE:

TOP IMAGES COME FROM IMPRESSIVE OPTICS:

Trinocular heads with 22mm field number, True infinity optical system available (IOS), fully centerable condenser for precise light control

LABORATORY GRADE OPTICS:

IOS W-PLAN objectives, high numerical apertures, Planachromatic optics with more than 90% flat field, Significant optical correction, low field curvature and distortion. Best resolution, color and contrast WITH Köhler Illumination B-510 Series is equipped with Köhler which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares. In this way, you will achieve the full control over the illumination aperture to reach the best compromise between resolution and contrast and for some enhancements on the depth of field.

X-LED3 EXCLUSIVE LIGHTING SOURCE:

Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

Model: B-510PH

Typology: ROUTINE MICROSCOPE

Description: Laboratory microscope for routine and research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light observation

Observation Modes: Brightfield, Phase Contrast

Illumination:

  • Light source: X-LED3
  • light intensity control using a knob on left side of the frame.
  • LED power: 3.6 W, comparable to a 50 W halogen bulb.
  • Color temperature: 6,300 K.
  • LED lifetime: > 65,000 hours.
  • Power supply: Input 110/240 Vac, 50/60 Hz; Output 6 Vdc 2.5 A.
  • Max. required power: 6 W.
  • Köhler illumination system with Field Diaphragm.

Focusing

  • Coaxial coarse and fine focusing mechanism (graduated, 0.002 mm)
  • Upper stop, to prevent the contact between
  • Flat fine focusing knob on the right side.
  • Adjustable tension of coarse focusing knob.

Stage

  • Double layer with mechanical sliding stage
  • Size 233x147 mm
  • X-Y movement range 78x54 mm
  • Belt-drive in X direction.
  • Vernier scale on two axes, accuracy 0.1 mm.

Nosepiece

  • Quintuple revolving nosepiece
  • Rotation on ball bearings.
  • Head Trinocular observation head
  • Inclined 30°
  • Rotatable 360°
  • Diopter adjustment on left eyepiece (+- 5 diopter adjustment).
  • Interpupillary adjustment 50 - 75 mm
  • Fixed photo port, 50/50 ratio.

Eyepieces

  • Plan Extra Wide Field
  • PL 10x/22
  • High Eyepoint

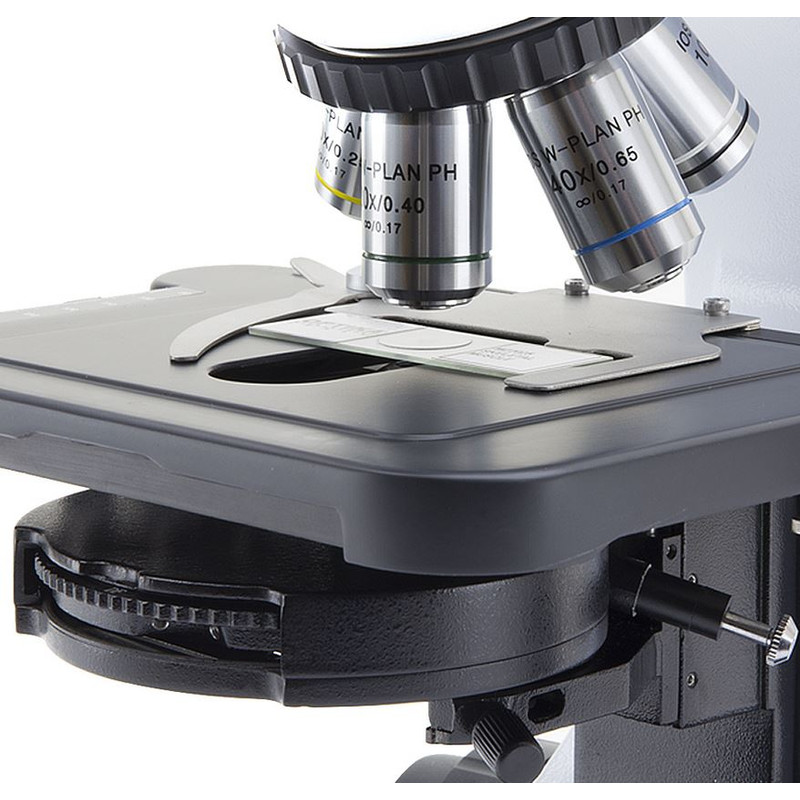

Objectives

  • Infinity corrected optical system IOS.
  • - IOS W-PLAN PH 10x/0.25, W.D. 10 mm
  • - IOS W-PLAN PH 20x/0.40, W.D. 5.1 mm
  • - IOS W-PLAN PH 40x/0.65, W.D. 0.54 mm
  • - IOS W-PLAN PH 100x/1.25, W.D. 0.13 mm (oil immersion)
  • All objectives have anti-fungus treatment.

Condenser

  • Phase condenser
  • 10x/20x
  • 40x
  • 100x
  • darkfield (dry)
  • brightfield positions
  • N.A. 1.25

Dimensions

  • HEIGHT: 420 mm
  • WIDTH: 270 mm
  • DEPTH: 390 mm
  • WEIGHT: 9.4 kg

Accessories included

  • Centering Telescope
  • Green filter
  • Instruction manual
  • Dust cover

Specifiche

Ottica


Scala di rappresentazione
4-100
Numero di obiettivo
4
Iluminazione
Luce trasmessa
Curvatura di campo
Piano
Correttore colore
acromatico
Sospensione
si
Obiettivo ad immersione
si
Condensatore
Abbe N.A.1.25
Tipo di pila
LED
Obiettiva 1
10x/0.25, W.D. 10 mml, IOS, w-plan, ph
Obiettivo 2
20x/0.40, W.D. 5.1 mml, IOS, w-plan, ph
Obiettivo 3
40x/0.65, W.D. 0.54 mml, IOS, w-plan, ph
Obiettivo 4
100x/1.25, W.D. 0.13 mm oil, IOS, w-plan, ph
Oculare
WF 10x / 22 mm (Ø 30mm)
Correzione all'infinito
si
Ingrandimento
40-1000
Sistema ottica
infinito

Prestazioni


Regolazione luminosità
si
Fluorescenza
no
Campo chiaro
si
Metodi di contrasto
Contrasto di fase

Meccanica


Tecnica di fabbricazione
Trinoculare
Visione (°)
Visione angolata 30°
Tavolino portaoggetti
Tavolo a croce
Revolver
5
Messa a fuoco
Movimenti ampi e micrometrici

Generale


Peso (g)
9400
Altezza (mm)
420
Larghezza (mm)
270
Lunghezza (mm)
390
Serie
B-510

Metodi di contrasto


Contrasto di fase
si

Campi di aplicatione


Medicina
si
Biologia
si

Campi di utilizzo


Biologia, zoologia e botanica
si
Patologia e istopatologia
si
Contrasto di fase
si
Medicina veterinaria
si
Laboratori centrali
si
Botanica
si
Microbiologia
si
Citologia e patologia
si
Biologia marina
si

Varie


Codice prodotto del fornitore
B-510PH
