IM-3

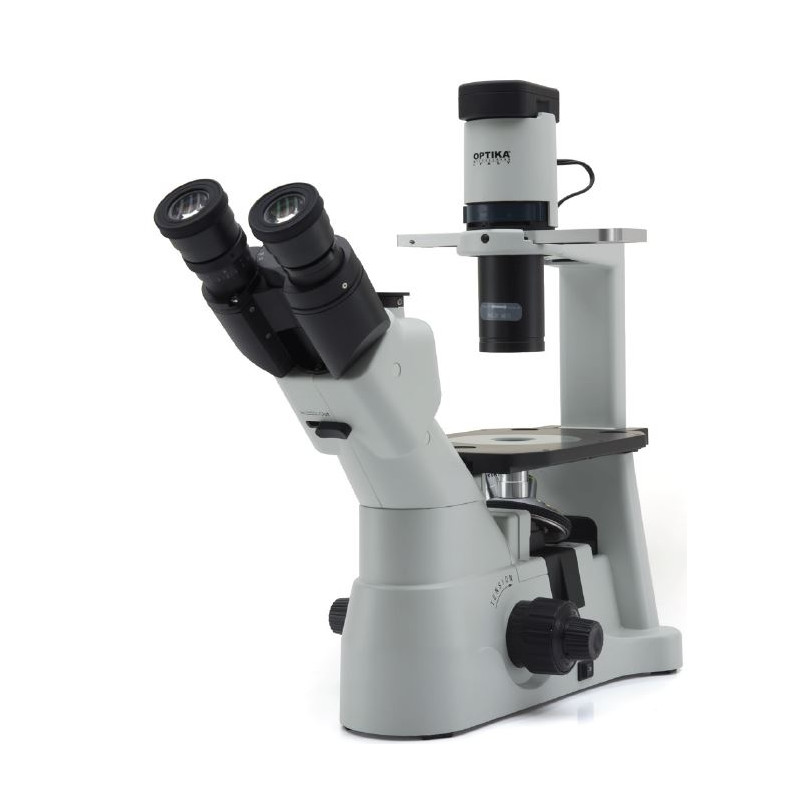

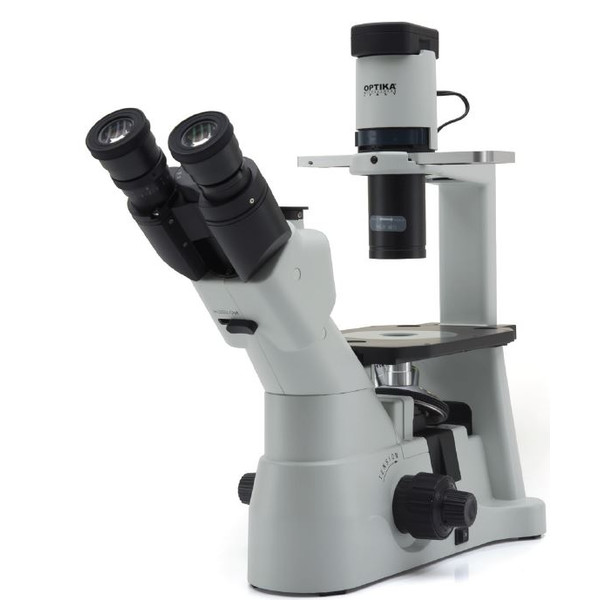

Laboratory inverted microscope for research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light observation.
TECHNICAL SPECIFICATIONS:
Illumination
Light source type X-LED8 with white 8W LED; light intensity control using a knob on left side of the frame.
Color temperature: 6300K
LED average life time approx. 50.000h
Voltage: 110/240Vac, 50/60Hz, 1A ; Fuse: T500mA 250V
Max power required: 13W
Observation Modes
Brightfield, phase contrast.
Focusing
Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen.
Adjustable tension of coarse focusing knob.
Stage
Fixed stage, dimensions 250x160 mm.
2 stage insert (glass and metal) with hole for small dimension specimens.
OPTIONAL:
- Mechanical stage mountable on the right side of the stage, total dimension=250x230 mm, X-Y translation range 120x80 mm.
- Metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.
- Pair of side extensions to expand the surface of the stage.
Nosepiece
Quintuple revolving nosepiece, rotation on ball bearings.
Head
Trinocular observation head, inclined 45°.
Diopter adjustment on left eyepiece.
Interpupillary adjustment 50-75 mm.
Eyepieces
Wide field eyepieces EWF10X/22 with field number 22.
Objectives
Infinity corrected optical system IOS (Infinity Optical System).
Plan-achromatic LWD objectives infinity corrected, for thickness 1.2 mm, made by following objectives:
-) Plan-achromatic IOS LWD 10XPh, N.A. 0.25, W.D. 7.94 mm
-) Plan-achromatic IOS LWD 20XPh, N.A. 0.40, W.D. 7.66 mm
-) Plan-achromatic IOS LWD 40XPh, N.A. 0.60, W.D. 3.71 mm
All objectives are treated with an anti-fungus treatment.
Condenser
LWD condenser, N.A. 0.30, working distance 72 mm.
The condenser can be removed to extend the working distance up to 150 mm.
Precentered slider with phase rings 4X/10X and 20X/40X.
Dimensions
HEIGHT: 495 mm
WIDTH: 230 mm
WIDTH WITH OPTIONAL MECHANICAL STAGE: 300 mm
DEPTH: 540 mm
WEIGHT: 9 kg
Accessories
Green filter, instruction manual and dust cover included.
Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.
Expert commentary by Prof. Dr. Guido Posern, Director Institute of Physiological Chemistry, Medical Faculty, Martin Luther University Halle-Wittenberg:
"I have a very good impression. Assembly is simple. Everything works, with the exception of the attached setting eyepiece (I can't see anything with it; possibly wrong model, but it's not absolutely necessary either). The phase contrast is impeccable in all three lenses for standard cell cultures of mammalian cells. The phase plates are correctly tuned and clearly labeled. So far I can't find any disadvantages compared to our other, sometimes much more expensive ones. Brightfield is not very relevant for us, but apparently it also works OK. Whether the robustness of student use can withstand it has to be seen, but so far the device makes a solid and easy to operate impression.
Conclusion: an excellent cell culture microscope for standard applications in research with a top price-performance ratio!"
