Microscopi > Microscopi > Microscopi invertiti > Optika > IM-3 > Optika Microscopio invertito Mikroskop IM-3MET-SW, trino, invers, IOS LWD U-PLAN MET, 50x-500x, EU
Prodotto n.: 56137

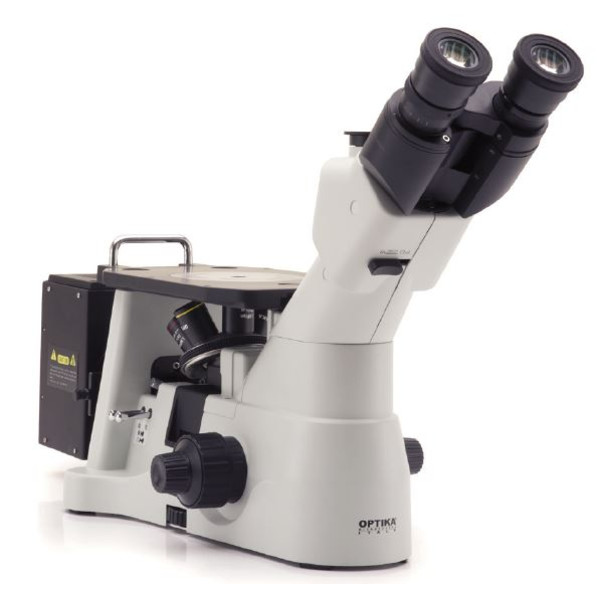

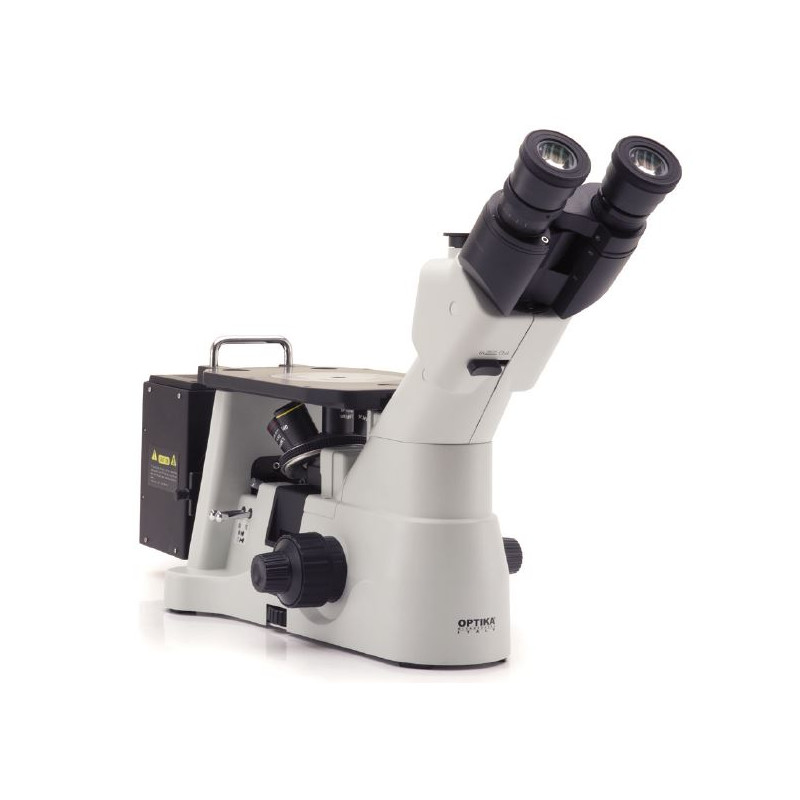

Microscopio invertito Mikroskop IM-3MET-SW, trino, invers, IOS LWD U-PLAN MET, 50x-500x, EU

Prezzo di vendita consigliato: $ 3.120,00 Il nostro prezzo:
$ 2.810,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
spedibile in 6-10 settimane + Tempo di trasporto

Nessuna consegna possibile prima di Natale.
Mostra alternative


Descrizione prodotto

Per saperne di più sulla serie IM-3...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

IM-3 Series- Inverted Microscopes For Routine Applications

Your Preferred Inverted Microscope For Routine Applications

Intuitive, easy use for all levels of experience

  • Ergonomic controls for fast and efficient investigations
  • Excellent optics with high numerical aperture for brilliant images
  • Compact footprint to save space

Fast, efficient investigations

  • Best-in-class LED illumination
  • Easy to use aperture diaphragm to adjust your brightfield view
  • Bright images also with light-demanding techniques as phase contrast

Adjust It To Your Individual Needs

Designed to faciliate your daily routine

  • Removable condenser to increase the working distance (up to 150 mm)
  • Easy set-up of phase contrast with pre-centered slider
  • Contemporary ergonomic design

Extend your comfort with optional accessories

  • Mechanical stage with X-Y translation
  • More space on the stage with load-bearing side extensions
  • Interchangeable metallic inserts for slides, Petri dishes and flasks
  • Improved Optical Performance, Long Working Distance

Excellent contrast and resolution

  • Comprehensive range of objectives for extended versatility
  • Full chromatic correction and field planarity for 22mm field
  • Enhanced image quality, high contrast and brightness

Observe even the most complex samples

  • All models equipped with Infinity-Corrected IOS optics
  • Phase contrast objectives for examination of transparent samples
  • High-quality dry objectives for material science applications

Stay Connected With Your Specimen

Easy integration with digital world

  • Trinocular head with photo ports, activated with a touch of a lever
  • Complete range of adapters for all kinds of camera
  • Image fidelity thanks to pure white LED illumination

Software to simplify your workflow

  • Effective image capturing and live videos
  • Get fast, user-friendly, high resolution imaging
  • Annotate your images and measure distances

X-LED8 - Exclusive Lighting Source

Powerful and uniform illumination

  • Unmatched colour fidelity and brightness of your specimen
  • Special technology able to double the light intensity
  • Constant pure-white colour temperature, 6,300 K

Cut electricity bils by 90%

  • Money & energy saving
  • Low power consumption, only 8 W
  • LED long lifetime (50,000 hours = 20 years at 8 hours/day usage)

IM-3MET

TECHNICAL SPECIFICATIONS:

Illumination: Halogen bulb 12V/50W; intensity light control using a knob on the left side of the frame. Voltage: 110/240Vac, 50/60Hz, 1A ; Fuse: T3.15A 250V. Max power required: 62W

Observation Modes: Brightfield, polarised light.

Focusing: Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Stage: Fixed stage, dimensions 250x160 mm. Metal stage insert with hole for small dimension specimens.

OPTIONAL:

- Mechanical stage mountable on the right side of the stage, total dimension=250x230 mm, X-Y translation range 120x80 mm.

- Metallic interchangeable inserts for slides, Petri dishes, Terasaki, multi-Well plates, etc.

- Pair of side extensions to expand the surface of the stage.

Diaphragms. Field and aperture diaphragms (centrable).

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Head: Trinocular observation head, inclined 45°. Diopter adjustment on left eyepiece. Interpupillary adjustment 50-75 mm.

Eyepieces: Wide field eyepieces EWF10X/22 with field number 22.

Objectives : Infinity corrected optical system IOS (Infinity Optical System). Plan-achromatic LWD objectives infinity corrected, made by following objectives: All objectives are treated with an anti-fungus treatment.

  • Plan-achromatic IOS 5X LWD, A.N. 0,15, W.D. 10,8 mm
  • Plan-achromatic IOS 10X LWD, A.N. 0,3, W.D. 10 mm
  • Plan-achromatic IOS 20x LWD, A.N. 0,45, W.D. 4 mm
  • Plan-achromatic IOS 50X LWD, A.N. 0,55, W.D. 7,9 mm

Dimensions

HEIGHT: 390 mm

WIDTH: 220 mm

WIDTH WITH OPTIONAL MECHANICAL STAGE: 300 mm

DEPTH: 680 mm

WEIGHT: 9 kg

Accessories: Polarizing filter, rotatable analizer filter, blue and green filter. Instruction manual and dust cover included.

Specifiche

Ottica


Oculare
10
Tipo di obiettivo
Planare acromatico
Tipo di pila
Alogena
Condensatore
LWD, N.A. 0.30, WD 72 mm/slitta contrasto di fase 4x/10X e 20x/40x
Iluminazione
Illuminazione incidente
Ingrandimento
500
Sistema ottica
infinito
Obiettiva 1
Plan-achromatic IOS 5X LWD, A.N. 0,15, W.D. 10,8 mm
Obiettivo 2
Plan-achromatic IOS 10X LWD, A.N. 0,3, W.D. 10 mm
Obiettivo 3
Plan-achromatic IOS 20x LWD, A.N. 0,45, W.D. 4 mm
Obiettivo 4
Plan-achromatic IOS 50X LWD, A.N. 0,55, W.D. 7,9 mm

Prestazioni


Campo chiaro
si
Alimentatori
EU
Metodi di contrasto
senza

Meccanica


Tecnica di fabbricazione
Trinoculare
Messa a fuoco
Movimenti ampi e micrometrici (Graduazione 0,002 mm, con funzione stop di protezione obiettivo)
Visione (°)
Visione angolata 30°
Tavolino portaoggetti
Tavolino portaoggetti

Particolarità


Tavolino traslatore
-
Oculare grandangolo
si

Generale


Colore
grigio/nero
Altezza (mm)
495
Lunghezza (mm)
730
Larghezza (mm)
230
Peso (g)
9000
Serie
IM-3

Campi di aplicatione


Medicina
-
Industria
si

Campi di utilizzo


Università
-
Metallurgia
si

Sicurezza del prodotto

Produttore: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
