Prodotto n.: 57426

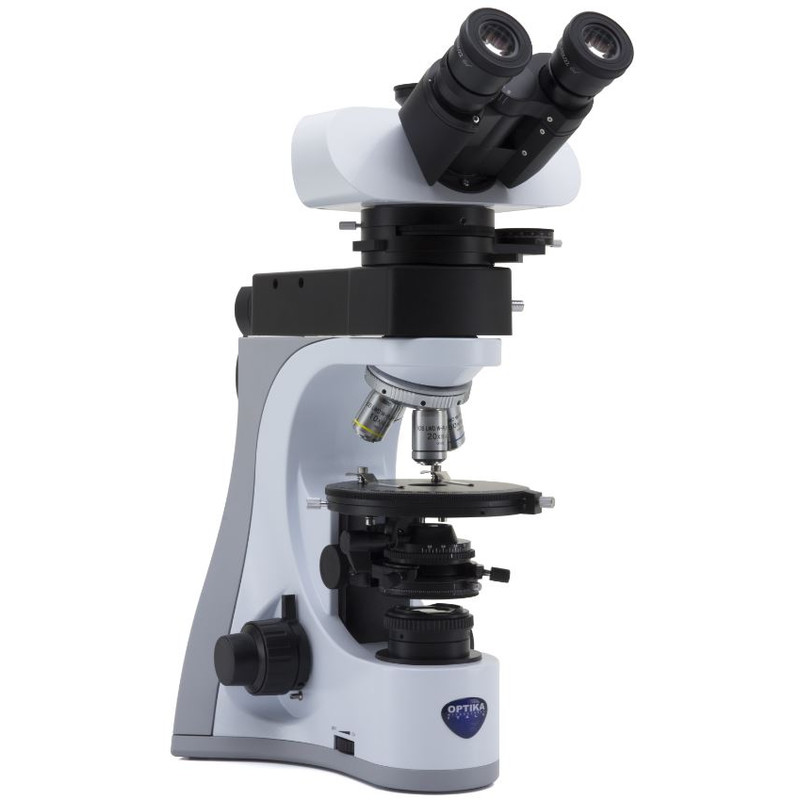

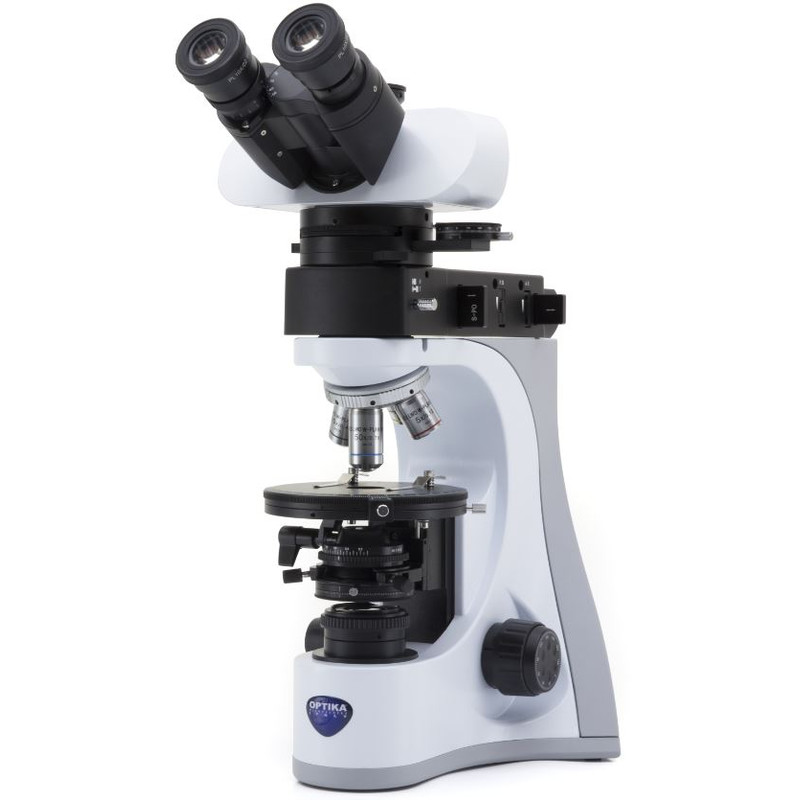

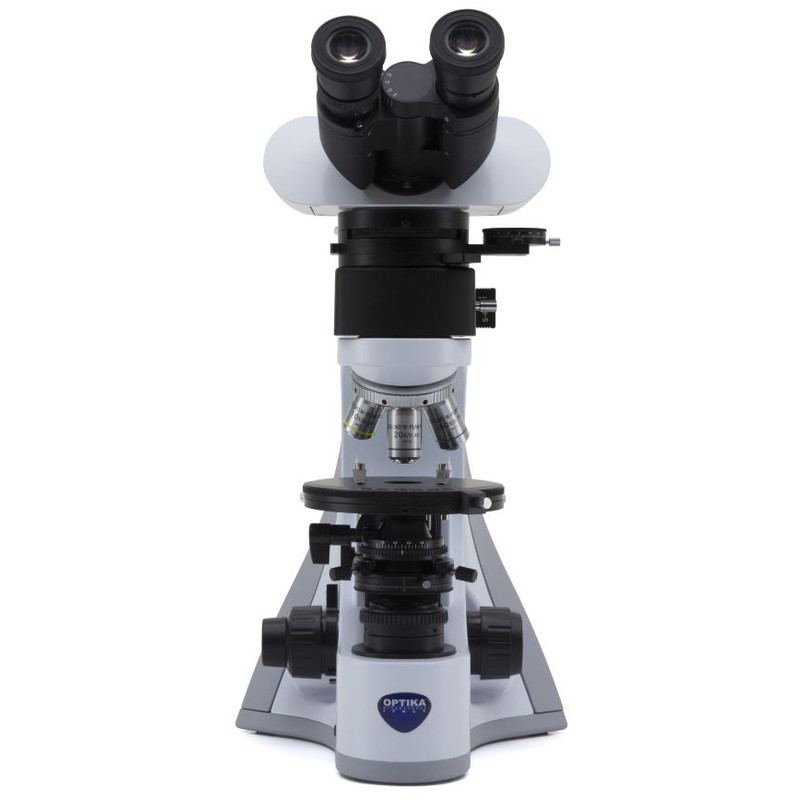

Microscopio B-510POL-I, polarisation, incident, transmitted, trino, IOS LWD W-PLAN POL, 50-500x, EU

Prezzo di vendita consigliato: $ 6.400,00 Il nostro prezzo:
$ 5.700,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
spedibile in 6-10 settimane + Tempo di trasporto

Nessuna consegna possibile prima di Natale.
Mostra alternative


Descrizione prodotto

Per saperne di più sulla serie B-510...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

B-510 Series

OPTIKA B-510 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users. This series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive IOS W-PLAN optics, the Infinity Corrected Optics (IOS) providing the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring good quality routinary optics and designed to ensure field flatness up to F.N. 22. The full Köhler system optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, whilst the state-of-the-art, exclusive X-LED3 lighting source makes sure your specimen will be properly and homogeneously illuminated with incredibly low consumptions and significantly long lifespan. With multi-head observation systems, up to 5 people/colleagues can observe the same image on B-510; ideal for teaching and training students, especially in the medical field. The main observer and additional viewers will benefit of an extremely homogeneous light conditions, with a three-colour pointer with settable intensity to highlight points of interest.

Highlights:

Illumination:

Transmitted brightfield illumination is one of the most commonly used observation method in optical microscopy, and is ideal for fixed, stained specimens or other types of samples having high natural absorption of visible light. B-510 series is fitted with high-efficiency LED brightfield illuminator X-LED3, for the best outcome when using this technique. Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

Optics:

  • Trinocular heads with 22mm field number
  • True infinity optical system available (IOS)
  • Fully centerable condenser for precise light control
  • IOS W-PLAN objectives, high numerical apertures
  • Planachromatic optics with more than 90% flat field
  • Significant optical correction, low field curvature and distortion

Best resolution, color and contrast WITH Köhler Illumination. B-510 Series is equipped with Köhler which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares.In this way, you will achieve the full control over the illumination aperture to reach the best compromise between resolution and contrast and for some enhancements on the depth of field.

Mechanics:

The rackless stage has been designed with a belt-driven mechanism that allows a smooth movement without any protruding part. This design gives you a more compact solution and lowers any risk of injury after accidentally hitting the rack with your hands.

  • Ergonomic positioning of the main controls
  • Long lasting mechanical parts, rackless moving stage
  • Maintenance-free illumination system
  • Improving productivity, reducing fatigue
  • Increases job accuracy and quality
  • Easily portable, with comfortable handgrip

B-500 Polarized Light

The B-500 Series is made of a comprehensive range of microscopes which have been designed to greatly perform in routine laboratory applications, including two solutions for polarized light. B-500POL is equipped with transmitted light only; for the most demanding users, the B-500POL-I is the perfect resposnse, as it offers also incident illumination. The illumination installed on B-500 Series represents the state-of-the-art, with X-LED³ (3.6W) as transmitted, and the ultra-efficient X-LED8 (8W) as incident light. Objectives are strain-free, being purposely designed for these applications. The swing-out Bertrand lens is centrable (for conoscopy/orthoscopy), whilst the attachment includes a 0°-90° rotating analyzer filter with tint plates. The stage is 360° rotating with stop knoband the condenser includes the rotating polarizing filter.

Model: B-510POL-I

Typology: ROUTINE MICROSCOPE

Description: Laboratory microscope for routine and research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light and incident light observation

Observation Modes:

  • Brightfield
  • Transmitted polarization
  • Incident polarization

Illumination:

Transmitted light:

  • Light source: X-LED3
  • Light intensity control using a knob on left side of the frame
  • LED power: 3.6 W, comparable to a 50 W halogen bulb
  • Color temperature: 6,300 K
  • LED lifetime: > 65,000 hours
  • Köhler illumination system with Field Diaphragm

Incident light:

  • High-efficiency X-LED8 with white LED
  • Light intensity control using a knob on left side of the frame
  • LED power: 8 W, comparable to a 100 W halogen bulb
  • Color temperature: 6,300 K
  • LED lifetime: > 50,000 hours
  • External power supply: Input 100-240 Vac 50-60 Hz / Output 6 Vdc 2.5 A.
  • Max power required: 13 W
  • Köhler illumination system with Field and Aperture Diaphragms, centrable

Focusing:

  • Coaxial coarse and fine focusing mechanism (graduated, 0.002 mm) with upper stop, to prevent the contact between objective and specimen.
  • Flat fine focusing knob on the right side
  • Adjustable tension of coarse focusing knob

Stage:

  • Rotatable stage
  • Locking mechanism
  • Centering knobs.
  • Vernier scale with accuracy 0.1 mm.
  • Diameter 145 mm
  • Specimen slide clamps

Nosepiece:

  • Quadruple revolving nosepiece
  • Rotation on ball bearings
  • Centering system for each objective

Head:

  • Trinocular observation head
  • Inclined 30°
  • Rotatable 360°
  • Diopter adjustment on left eyepiece (+- 5 diopter adjustment)
  • Interpupillary adjustment 50 - 75 mm
  • Fixed photo port, 50/50 ratio

Eyepieces:

  • Plan Extra Wide Field
  • PL 10x/22
  • High Eyepoint.
  • One of the eyepieces has a cross-hair reticle for optical centering

Objectives:

  • Infinity corrected optical system IOS.
  • - IOS LWD W-PLAN POL 5x/0.12, W.D. 15.5 mm
  • - IOS LWD W-PLAN POL 10x/0.25, W.D. 10.0 mm
  • - IOS LWD W-PLAN POL 20x/0.40, W.D. 5.8 mm
  • - IOS LWD W-PLAN POL 50x/0.75, W.D. 0.32 mm
  • All objectives have anti-fungus treatment.

Condenser:

  • Swing-out type condenser, sliding-in, N.A. 0.2/0.9, with centering system.
  • With rotating polarizer filter.
  • Bertrand Lens Swing-out type with centering mechanism for observation in conoscopy/orthoscopy.
  • Rotatable analyzer from 0° to 90° with graduated scale.
  • Tint plates included:
  • - 1° order red (?)
  • - ?/4
  • - Quartz wedge

Dimensions:

  • HEIGHT: 530 mm
  • WIDTH: 270 mm
  • DEPTH: 470 mm
  • WEIGHT: 11.5 kg

Accessories included:

  • Instruction manual
  • Dust cover

Specifiche

Ottica


Scala di rappresentazione
5-50
Numero di obiettivo
4
Iluminazione
Luce diretta e trasmessa
Curvatura di campo
Piano
Correttore colore
acromatico
Sospensione
si
Obiettivo ad immersione
si
Condensatore
Swing-out, N.A. 0.2/0.9
Tipo di pila
LED
Obiettiva 1
5x/0.12, W.D. 15.5 mm, IOS, LWD, W-PLAN, POL
Obiettivo 2
10x/0.25, W.D. 10.0 mm, IOS, LWD, W-PLAN, POL
Obiettivo 3
20x/0.40, W.D. 5.8 mm, IOS, LWD, W-PLAN, POL
Obiettivo 4
50x/0.75, W.D. 0.32 mm, IOS, LWD, W-PLAN, POL
Oculare
WF 10x / 22 mm (Ø 30mm)
Correzione all'infinito
si
Ingrandimento
50-500

Prestazioni


Regolazione luminosità
si
Fluorescenza
no
Campo chiaro
si
Metodi di contrasto
Polarizzazione

Meccanica


Tecnica di fabbricazione
Trinoculare
Visione (°)
Visione angolata 30°
Tavolino portaoggetti
Tavolino portaoggetti
Revolver
4
Messa a fuoco
Movimenti ampi e micrometrici (Graduazione 0,002 mm, con funzione stop di protezione obiettivo)

Generale


Peso (g)
11500
Altezza (mm)
530
Larghezza (mm)
270
Lunghezza (mm)
470
Serie
B-510

Metodi di contrasto


Polarizzazione
si

Campi di aplicatione


Industria
si

Campi di utilizzo


Metallurgia
si
Mineralogia
si

Varie


Codice prodotto del fornitore
B-150POL-I
