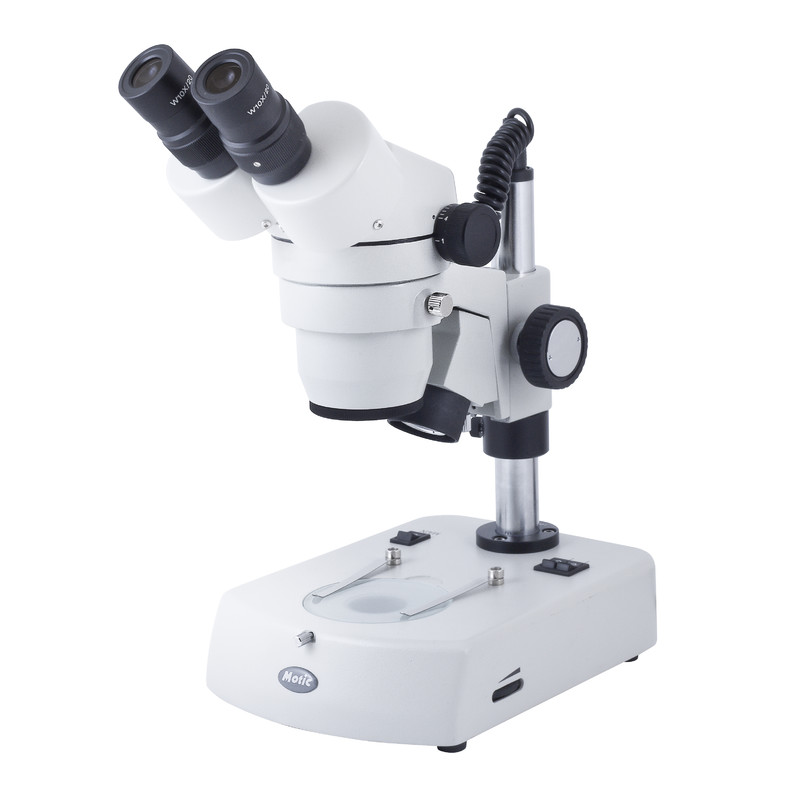

SZM-140
Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.
SMZ-140 N2GG - SMZ-143 N2GG

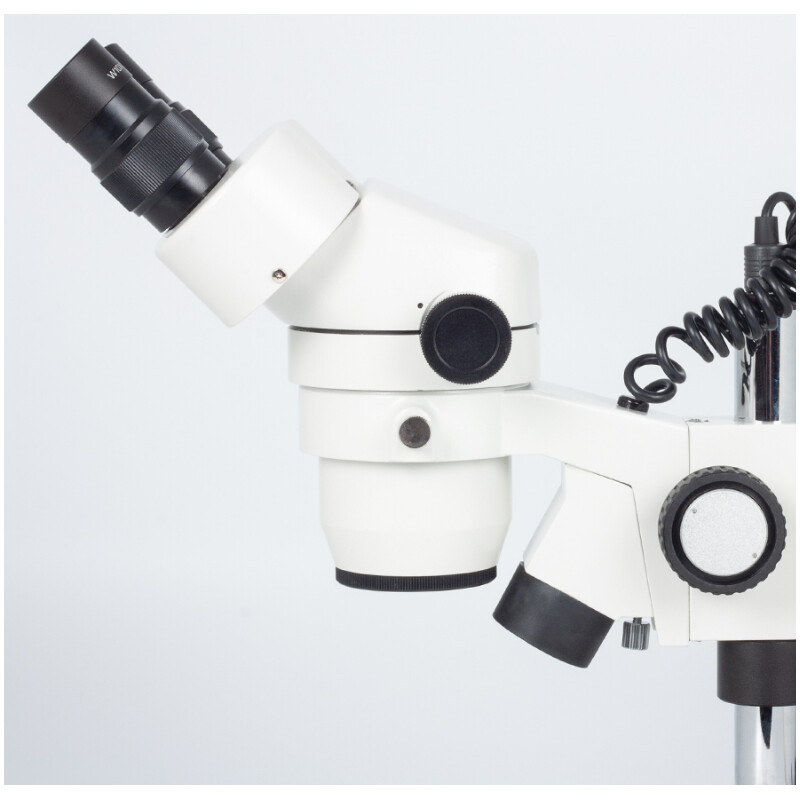

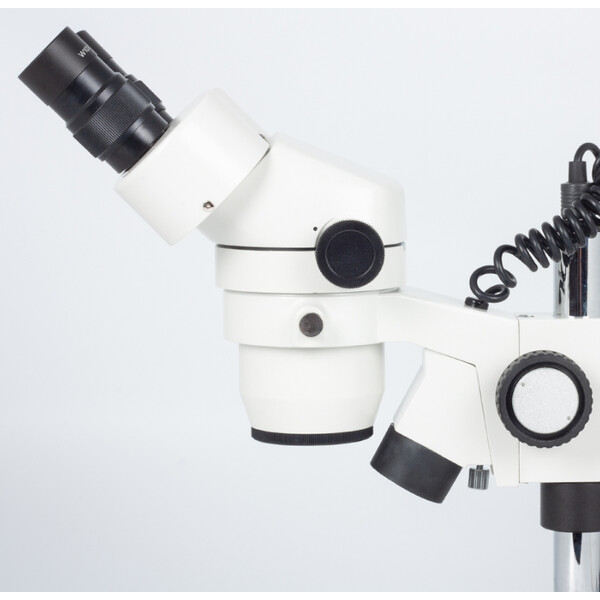

• 45° inclined binocular (SMZ-140) or trinocular (SMZ-143) head, rotates 360°
• Beam splitter from left eyepiece tube
• Widefield eyepieces 10X/20mm with diopter adjustment

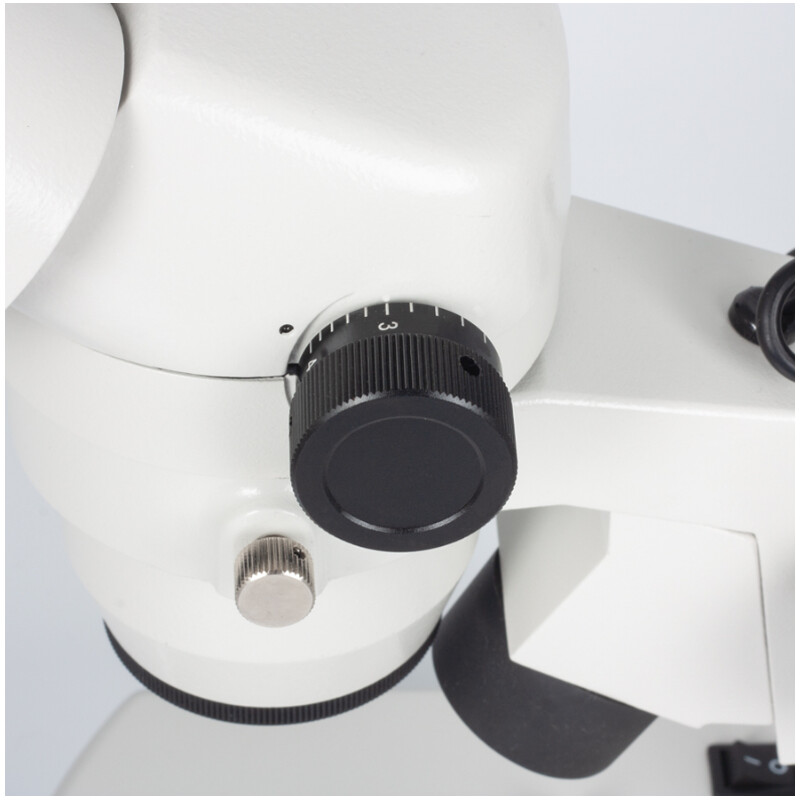

• 1:4 Zoom ratio, total standard magnification 10X through 40X with click stops at 10X, 20X, 30X and 40X
• 80mm Working distance

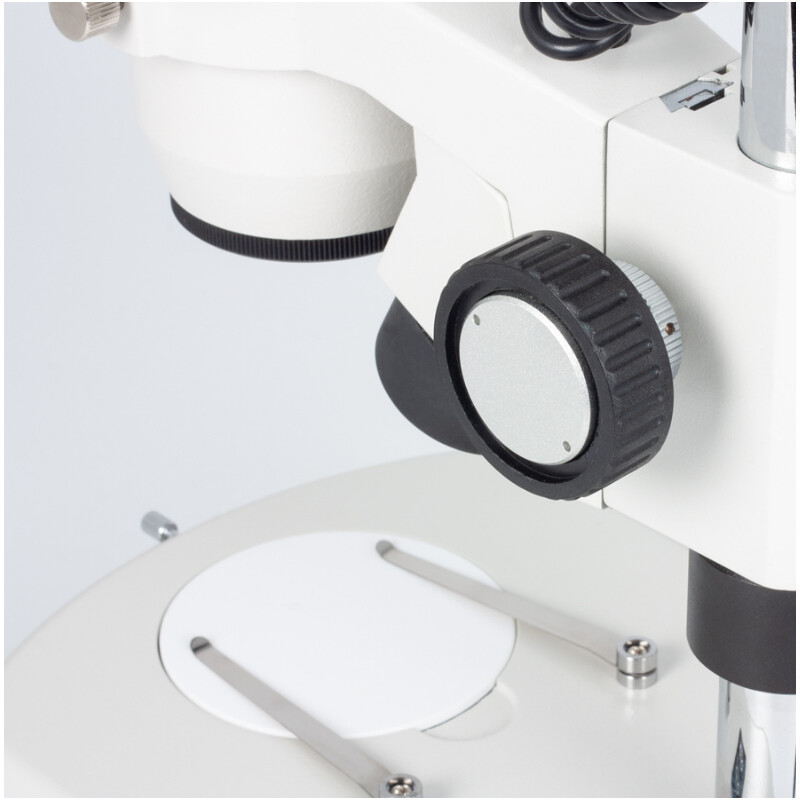

• Heavy Duty rack and pinion focusing block with slip clutch
• Pole stand with incident and transmitted Halogen Illumination with separate on/off switch
• Top Light: 12V/15W; Bottom Light 12V/10W with combined intensity control
• Supplied standard with 80mm stage plates (frosted glass, black and white)
Specification SZM 140
- Model: SMZ-140-N2GG
- Optical System: Greenough
- Observation Tube: Binocular head
- Interpupillary distance: 54-76mm
- Diopter adjustment: On both tubes , +/- 5 diopter
- Inclination: 45° inclined, 360º rotating
- Eyepieces: WF10X/20mm
- Objectives system: Zoom, ratio1:4
- Objectives magnification: 1X~4X
- Working distance: 80mm
- Stand: Pole type stand with transmitted illumination
- Base: 237x170mm
- Column/Arm: Ø25mm, 266mm high
- Head holder: For Ø25mm column and Ø74mm head with incident illumination
- Focus mechanism: Coarse focusing system with tension adjustment
- Focusing stoke: 49mm
- Incident illumination: Halogen 12V/15W with intensity control
- Transmitted illumination: Halogen 12V/10W with intensity control
- Transformer: Internal
- Power supply: 220V
- Accessories included: Black, white and frosted stage plates and dust cover
- Length x Width x Height: 237x170x335mm
- Weight: 6,2Kg
